| Application | # JD5l is designed for trademark, label. |
| Feature | Low temperature operation, good initial tack, good adhesion property, good weather resistance, good ability on water-proof, no oil leakage and easy for label cutting. |
| Appearance | Colorless, transparent |
| Viscosity | 22000CPS~22800CPS@180°C |
|
Peel adhesion to SUS 304 plate , 51N/25mm
|
| (N/25MM, 300mm/minutes) |
| Softening point | 124 °C |
| Usage guidance | 1. Suggested operation temperature: 180°C-200°C. |
| 2. Suggested tooling method: hot-melt spray nozzle or blade coating systems. |
| 3. Suggested cleaning method: Clean the equipment with mineral oil at 120°C. Then flush it with the same type adhesive below 170°C. |
| Precautions | 1.The property of glue adhesion will differ from the different surfaces of substrate and thickness of applied adhesive. |
| 2. Material is applied hot-appropriated clothing and eye protection should be used. |
| 3. Please keep the adhesive below 170°C during operation to keep the lowest danger of flammable volatiles. |
| 4. During adhesive operation, make sure the air flow and any fire is prohibited. |

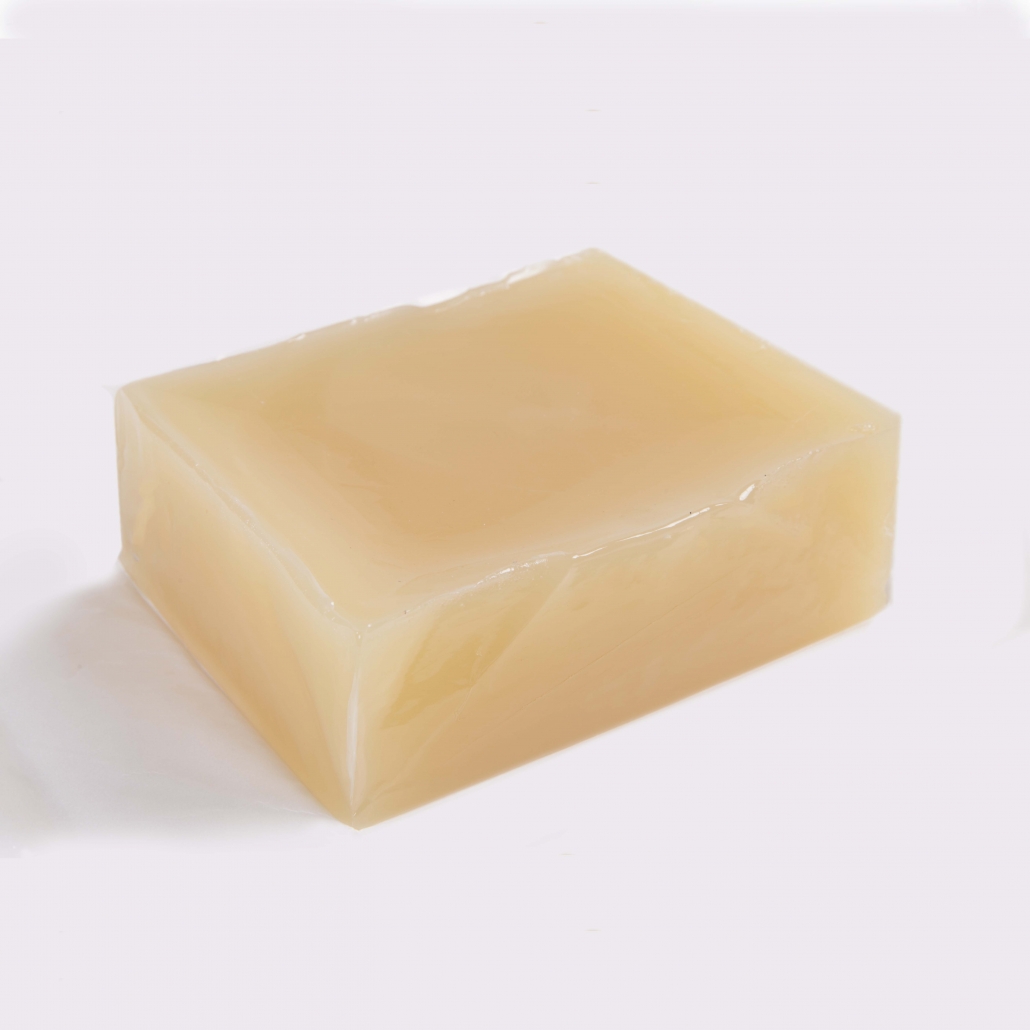

| Package | 1kg/block,each block with a release paper,20kgs in a carton. |
| Storage | 2 years in dry and cool environment below 35°C and far from fire, unexposed to the sunlight. |
