• CROSSWEAVE TAPE

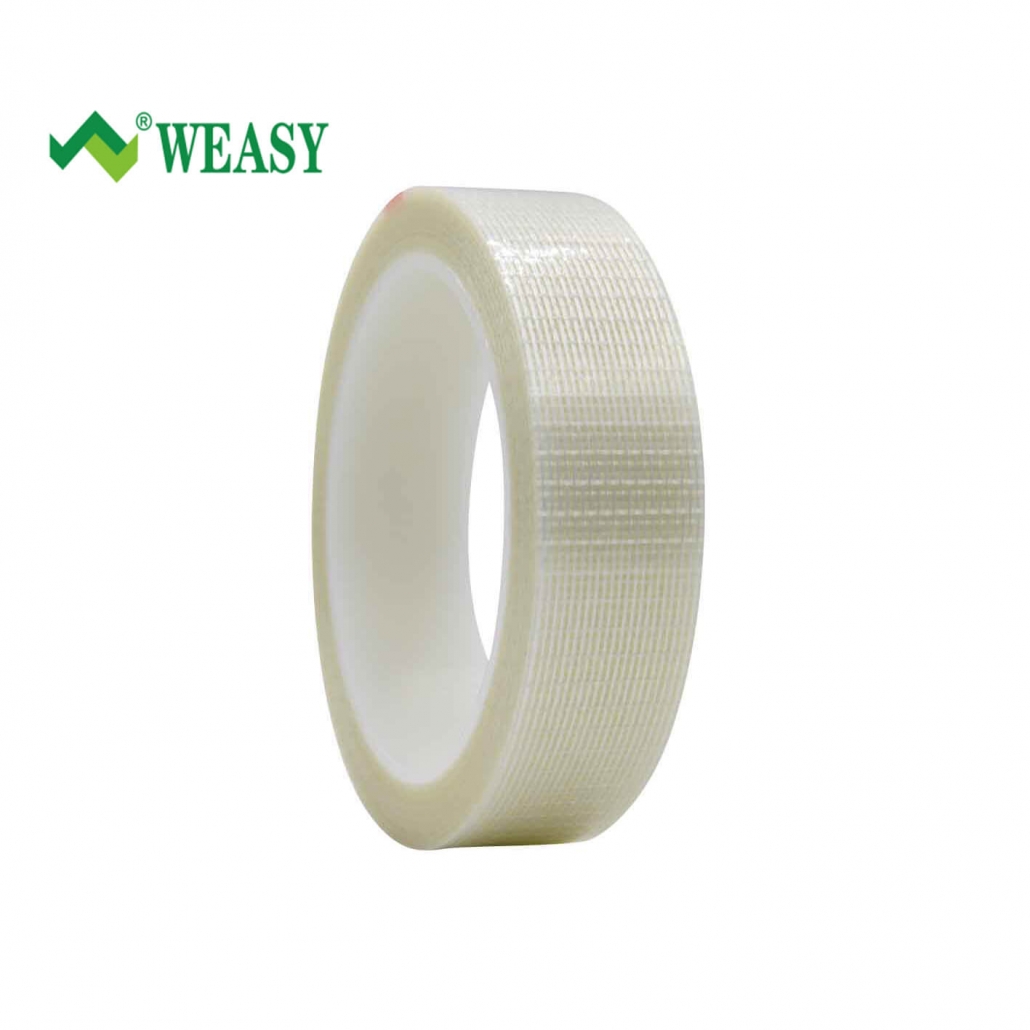

Heavy Duty Cross Weave Filament Tape #2206CS

  • Iem code: # 2206CS
  • Free samples:  Available.
  • Payment term: TT / Paypal /Western Union
  • Trade Terms: FOB/CIF/CFR/EXW
  • Lead time: Within 2 Weeks
  • Package: Hard cardboard box/plywood case/pallet
  • MOQ: 1000SQM

Product Description

Weasy #2206CS  is for cartons requiring extra strength in a closure solution, this bi-directional glass filament reinforced tape provides strength in both directions . Its bi-directional filaments allow it to resist center seam splitting when used as a single strip closure or “H” seal closure on heavy duty single, double, or triple wall regular slotted containers .

Technical Information

Physical PropertiesStandardMetricTest Method
ReinforcementFiberglass
AdhesiveSynthetic Rubber
BackingPET
ColorClear
Total Thickness6.66 mil0.170 mmASTM D-3652GB/T7125
Peel Adhesion108oz/in35 N/25mmASTM D-3330GB/T2792
Holding Power≥72 h≥72hASTM D-3654GB/T4851
Tensile Strength215lbs/in950N/25mmASTM D-3759GB/T7753
Elongation at Break5%5%ASTM D-3759GB/T7753
Service Tem.--Mini23℉-5℃BC/BD-220SEBC/BD-220SE
Service Tem.--Max158℉70℃DHG-9055ADHG-9055A

Specifications

  • A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
  • We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.

*Application

  • *Palletizing of packaging
  • *Bending of tubes and bars
  • *Heavy packaging
  • *Closing of metal coils
  • *Paint anchor test
  • *Reinforcement and closing of cables
  • *Structuring of umbilical cord for marine probe
  • *General applications where tensile strength and good adhesion are required.

*Packaging

*Certification

  • ISO9001:2015
  • ROHS REPORT
  • SGS Report
