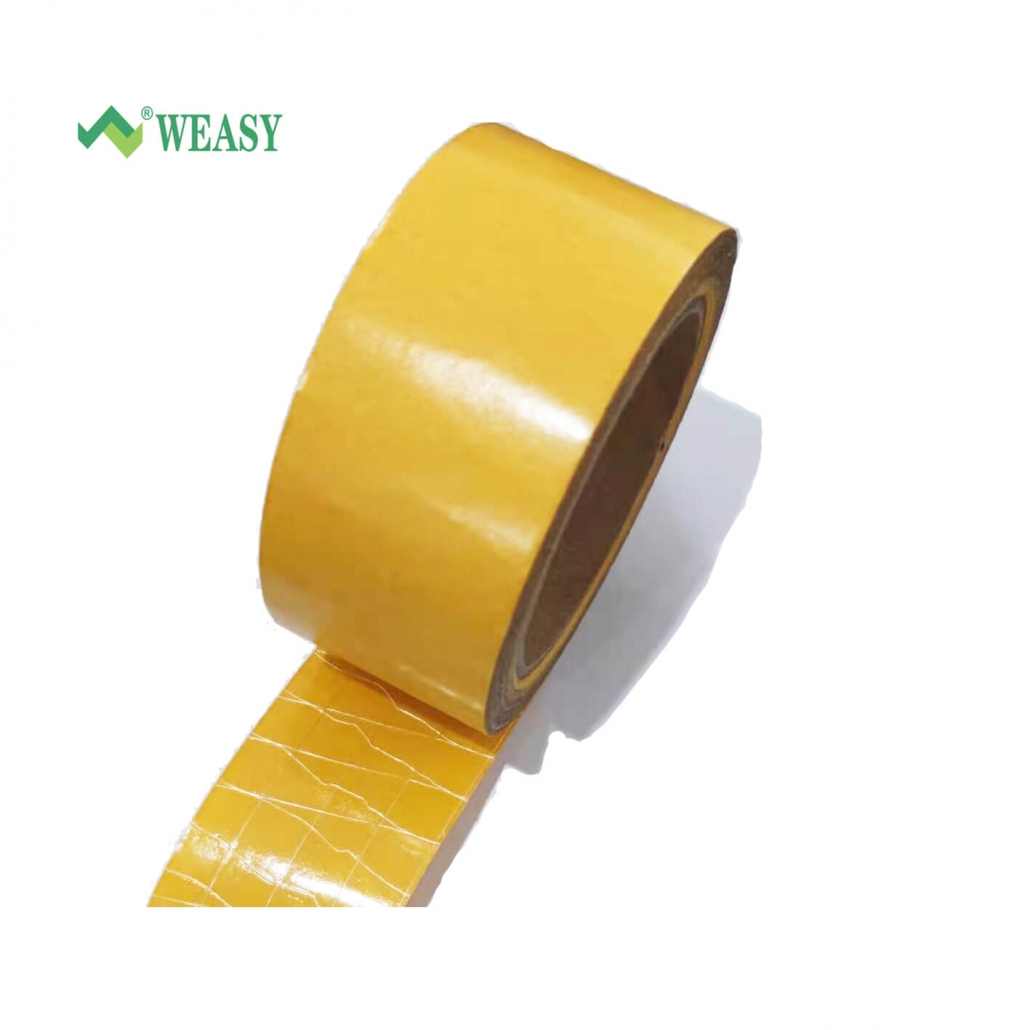

Double Sided Mesh Tape #220

Iem code:#220
Free samples: Available.
Payment term: TT / Paypal /Western Union
Trade Terms: FOB/CIF/CFR/EXW
Lead time: Within 2 Weeks
Package: Hard cardboard box/plywood case/pallet
MOQ: 1000SQM

Product Description

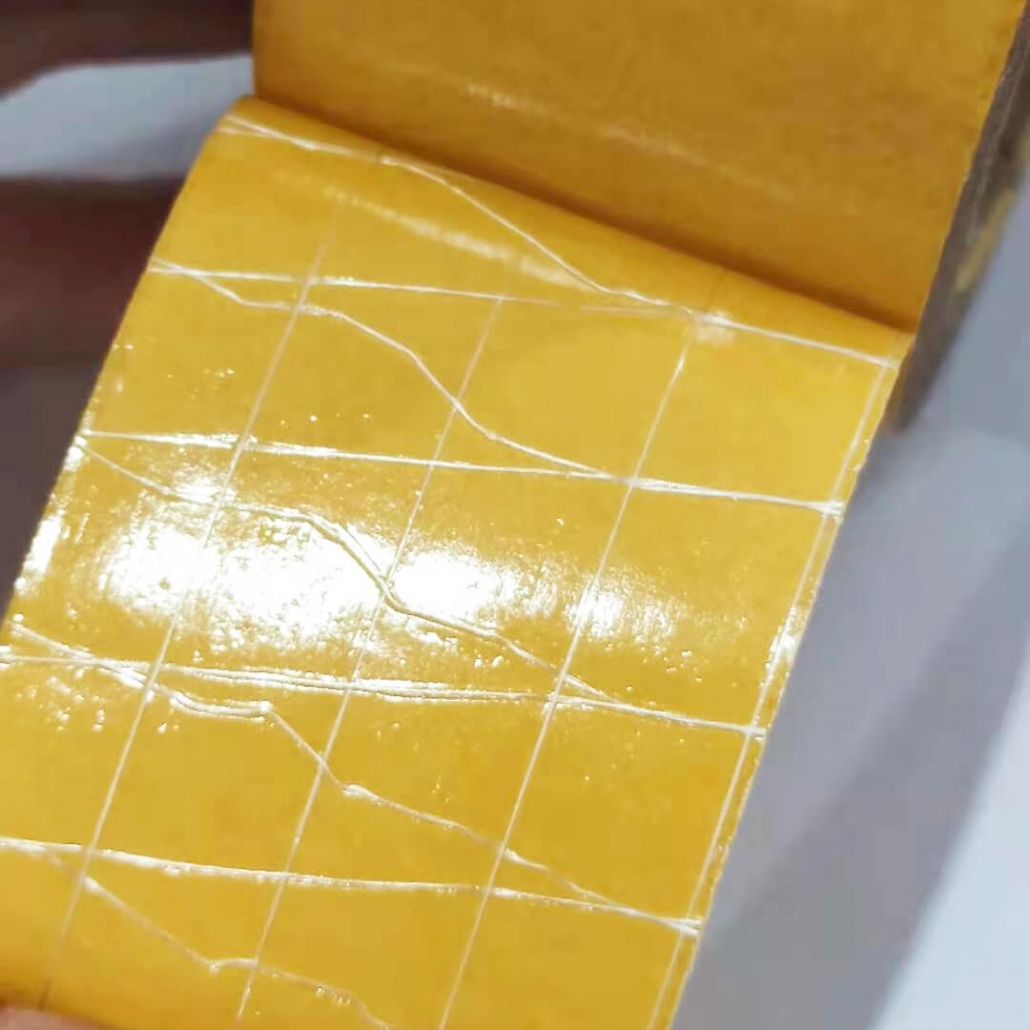

The reinforced fiberglass yarn of Double Sided Mesh Tapes GF-0302-220 provides the filament tapes high tensile strength;The excellent adhesive is specially to provide good initial adhesion & long-term holding power.

Technical Information

Physical Properties	Standard	Metric	Test Method
Reinforcement	Fiberglass
Adhesive	Synthetic Rubber
Backing	Glassine Paper
Color	Yellow
Total Thickness	8.0 mils	0.2 mm	ASTM D-3652	GB/T7125
Peel Adhesion	160 oz/in	40N/25mm	ASTM D-3330	GB/T2792
Holding Power	≥24h	≥24h	ASTM D-3654	GB/T4851
Tensile strength	22 lbs/in	100N/25mm	ASTM D-3759	GB/T7753
Elongation at Break	5%	5%	ASTM D-3759	GB/T7753
Service Tem.--Mini	23℉	-5℃	BC/BD-220SE	BC/BD-220SE
Service Tem.--Max	158℉	70℃	DHG-9055A	DHG-9055A

Specifications

A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.

*Application
