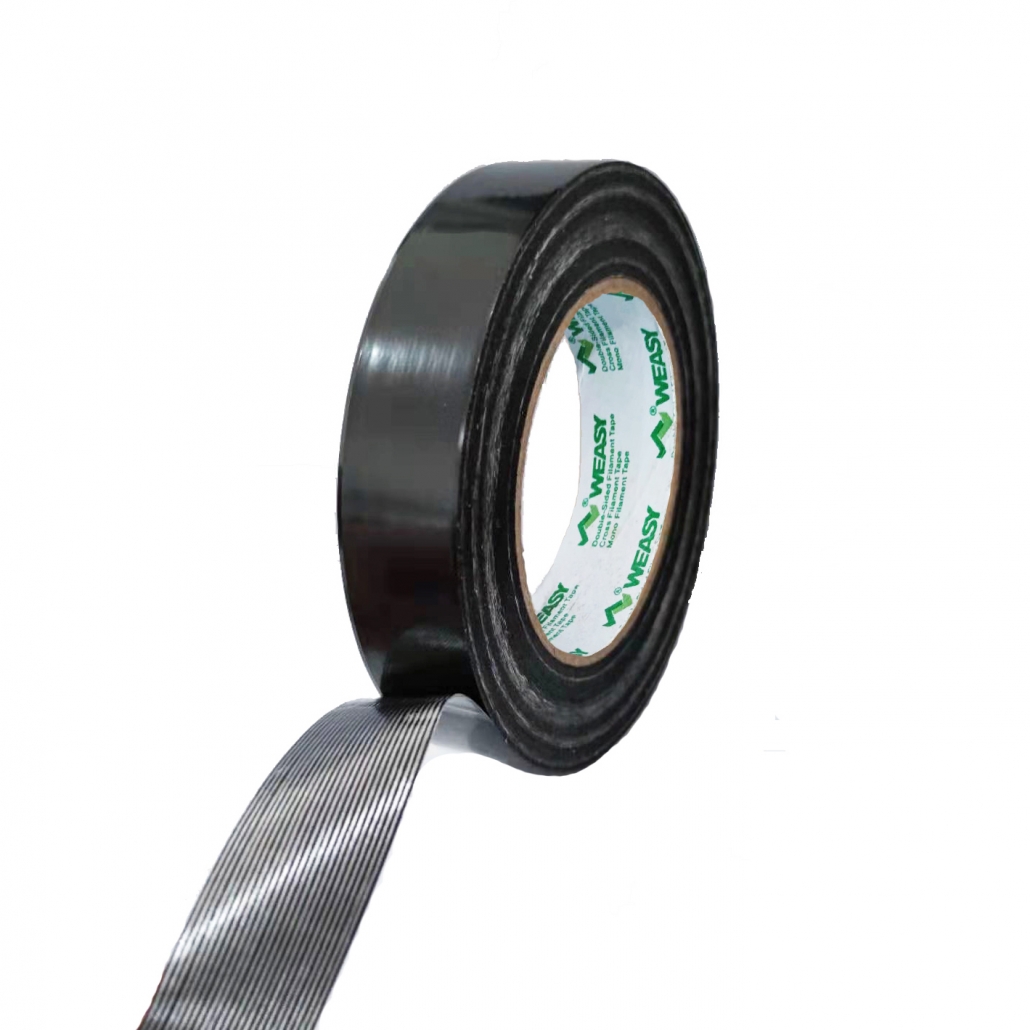

Black Filament tape #3191A
- Iem code:#3191A
- Free samples: Available.
- Payment term: TT / Paypal /Western Union
- Trade Terms: FOB/CIF/CFR/EXW
- Lead time: Within 2 Weeks
- Package: Hard cardboard box/plywood case/pallet
- MOQ: 1000SQM
Product Description
Weasy #3191Ais a transparent and reinforced filament tape. The reinforced fiberglass yarn provides the filament tapes high tensile strength; the PET film backing provides excellent abrasion and moisture resistance. The proper packaging-grade adhesive is specially to provide good initial adhesion & long-term holding power
Technical Information
| Physical Properties | Standard | Metric | Test Method | |
| Reinforcement | Fiberglass | |||
| Adhesive | Synthetic Rubber | |||
| Backing | PET film | |||
| Color | Black | |||
| Total Thickness | 6.5 mil | 0.170 mm | ASTM D-3652 | GB/T7125 |
| Peel Adhesion | 125 oz/in | 35 N/25mm | ASTM D-3330 | GB/T2792 |
| Holding Power | ≥72 h | ≥72 h | ASTM D-3654 | GB/T4851 |
| Tensile Strength | 120 lbs/in | 550N/25mm | ASTM D-3759 | GB/T7753 |
| Elongation at Break | 5% | 5% | ASTM D-3759 | GB/T7753 |
| Service Tem.--Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE |
| Service Tem.--Max | 158℉ | 70℃ | DHG-9055A | DHG-9055A |
Specifications
- A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
- We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.
*Application
- *Palletizing of packaging
- *Bending of tubes and bars
- *Heavy packaging
- *Closing of metal coils
- *Paint anchor test
- *Reinforcement and closing of cables
- *Structuring of umbilical cord for marine probe
- *General applications where tensile strength and good adhesion are required.
*Packaging
*Certification
- ISO9001:2015
- ROHS REPORT
- SGS Report
